56500-163-4F22 | Badger Meter Europa
Turbine meter, 25 bar, Ø 8 mm, PA 6.3 T, 56500-163-4F22
Unit Price (€ / pc.)
52.3124 € *
Available: 20 pcs.
Leadtime: 4 Weeks **
Total Price:
52.31 € *
Price list
Quantity
Price per unit*
1 pcs.
52.3124 €
5 pcs.
49.3969 €
10 pcs.
46.4933 €
25 pcs.
43.5897 €
50 pcs.
40.6861 €
*incl. VAT plus shipping costs
**Subject to prior sale

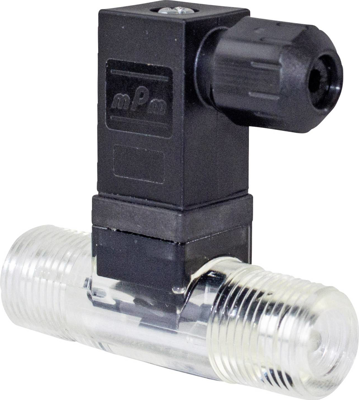

Turbine meter, 56500-163-4F22, Badger Meter Europa
The small turbine meter VISION measurement technology is ideal for the accurate measurement of low viscous and nonaggressive fluids. This product is most suited for the measurement of flow rates from 0.5 to 35 l/min. The turbine meter can be mounted in any position.
Technical specifications
| Degree of protection (IP) | IP67 | |
| diameter | 8 mm | |
| Product type | turbine meter | |
| Switching Voltage (DC) | 24 V | |
| Shell Material | PA 6.3 T | |
| Connection | stranded wires | |
| measurement range | 1-25 l/min | |
| Pressure | 25 bar |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 90261081 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
